Electronics

For dispensing applications in the electronics industry

Viscotec_Elektronik_Header-Webseite_900x230

In electronics manufacturing, components involved in the production process must above all provide maximum precision and reliability. Today, microchips are used in practically all electrical devices and they are becoming ever more complex and powerful. ViscoTec dosing systems, which work according to the endless piston principle, offer the ideal properties to ensure that all relevant applications in the electronics industry are perfectly dosed.
Conformal coating

ViscoTec conformal coating - applyingConformal coating

A conformal coating is a protective coating which takes the form of a non-transparent or transparent varnish that is applied to all or parts of PCBs. The materials are usually high-viscosity thermal or UV-curing materials and are dosed onto the PCB using either a thin-film or a thick-film procedure.

Dam & fill

ViscoTec dam & fill - fillerDam & fill

In dam & fill applications, the primary aim is to protect highly complex assemblies. Firstly, a high-viscosity barrier, known as the “dam”, is applied to the surface to be sealed. Then the adjacent area is filled with a filler and the area being dosed is sealed and protected by the fluid material.

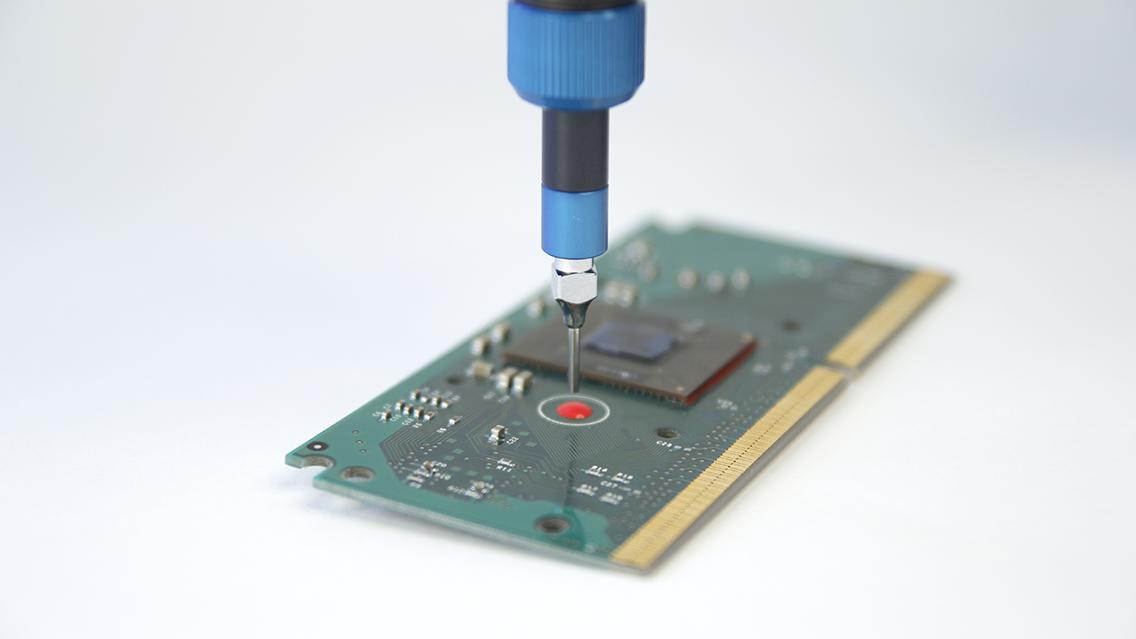

Glop top

ViscoTec Glob Top / GlobTop - potting semiconductorGlob top

Glob-top potting is designed to protect sensitive components, usually semiconductor chips, from mechanical stress such as vibrations or fluctuations in temperature. External environmental factors too, like moisture or corrosion, are thus prevented from having an impact on the potted components. This effect is realised by applying a fluid resin matrix, mostly an epoxy resin adhesive, which is then cured.

Micro-dosing

ViscoTec Mikrodosierung - Microdispensing / micro-dosing in small quantitiesMicro-dosing

Micro-dosing refers to the dosing of fluid media in volume ranges of just a few microlitres. Other fields of application are, for example, bead dosing, sealing, dot dosing, potting and 2-component applications. These applications in particular call for high levels of precision, repeat accuracy and reliability.

Optical bonding

ViscoTec Optical Bonding - applying adhesives for Display, GlassOptical bonding

Optical bonding is a process in which a clear adhesive is applied between the layers of glass in a touch-screen display. The main goal of this bonding process is to improve the performance of the display when outdoors. This procedure eliminates the gap between the glass and the display. A great deal of importance is placed on dosing precision in the field of smartphone and tablet manufacturing in particular.

Underfill

ViscoTec underfill - for adhesives microchipsUnderfill

Underfill applications are usually utilised with isotropic conductive adhesives. The isotropic conductive adhesive establishes the electrical connection between the microchip and the substrate. Since this adhesive is not applied over the entire surface, once it has cured (either thermally or by means of UV radiation), the hollow space needs to be refilled, or “underfilled”.

  • Maximum precision is our standard, just ask.
